Created on: Saturday, May 30, 2015
3354 x 2356
(243 KiB)
|
4608 x 3456
(5964 KiB)
|
4608 x 3456
(6772 KiB)
|
387 x 305
(MOV video 40Mbytes)
|
Youtube Video https://youtu.be/cB5jEVDvAwI |
|

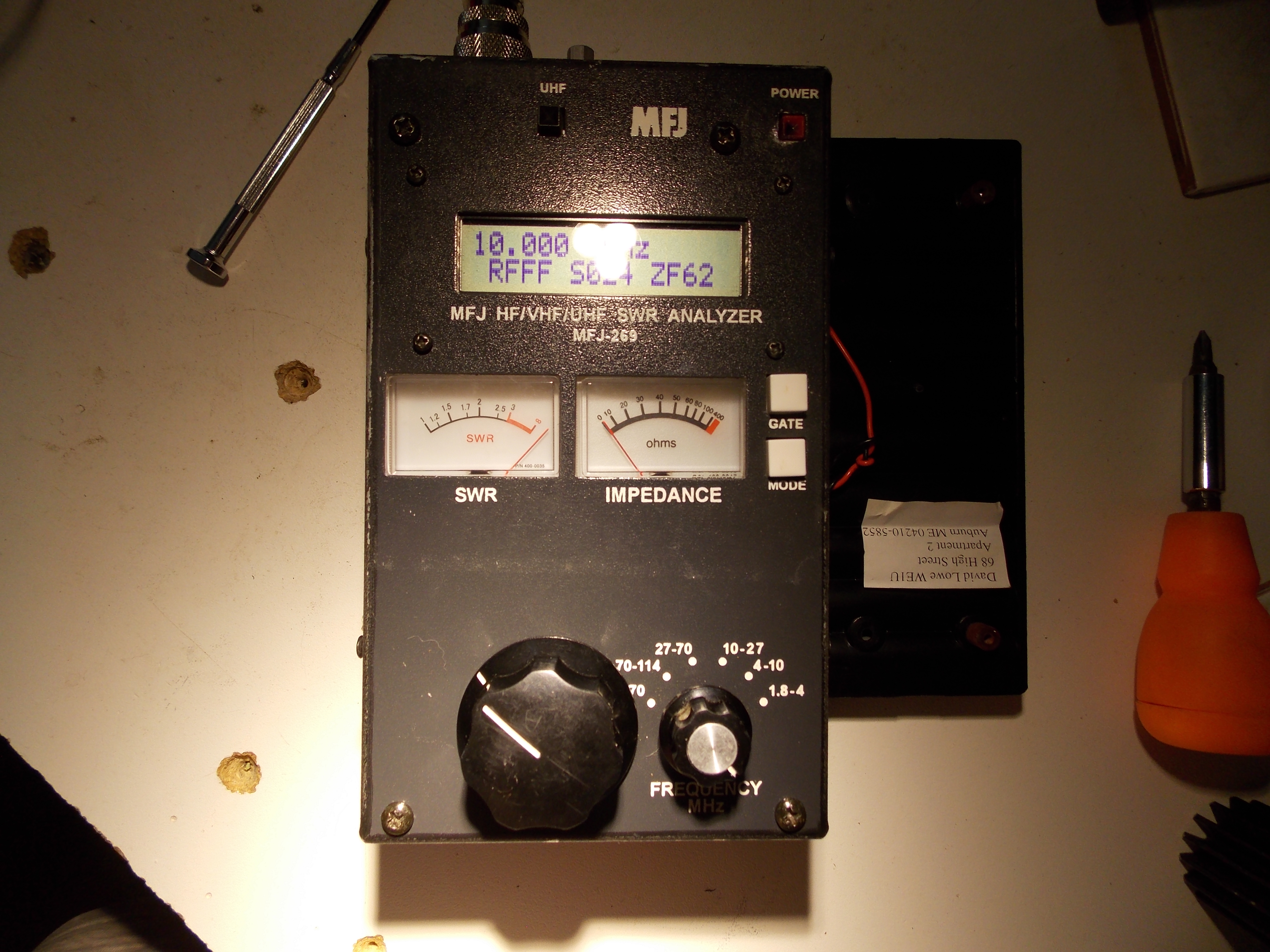

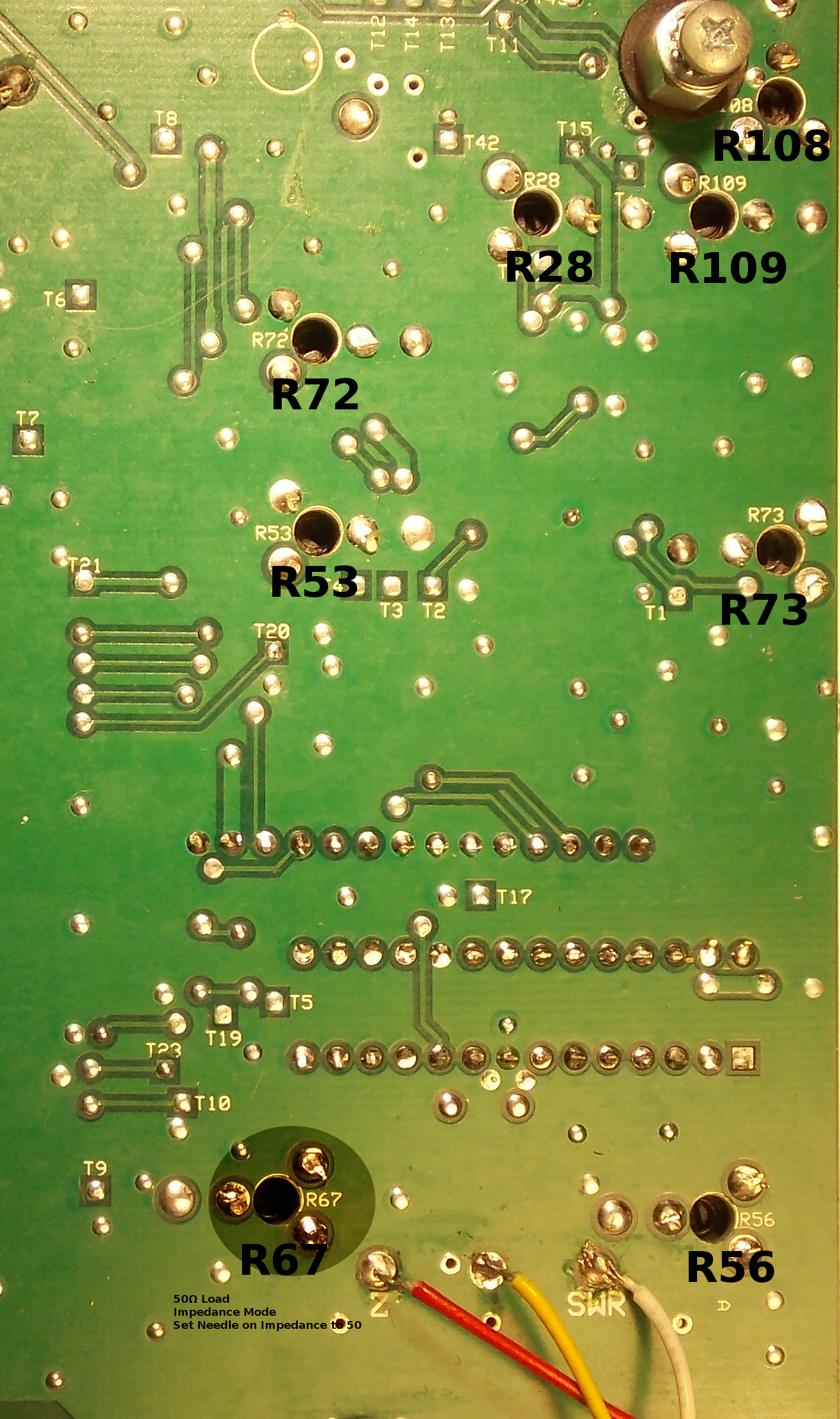

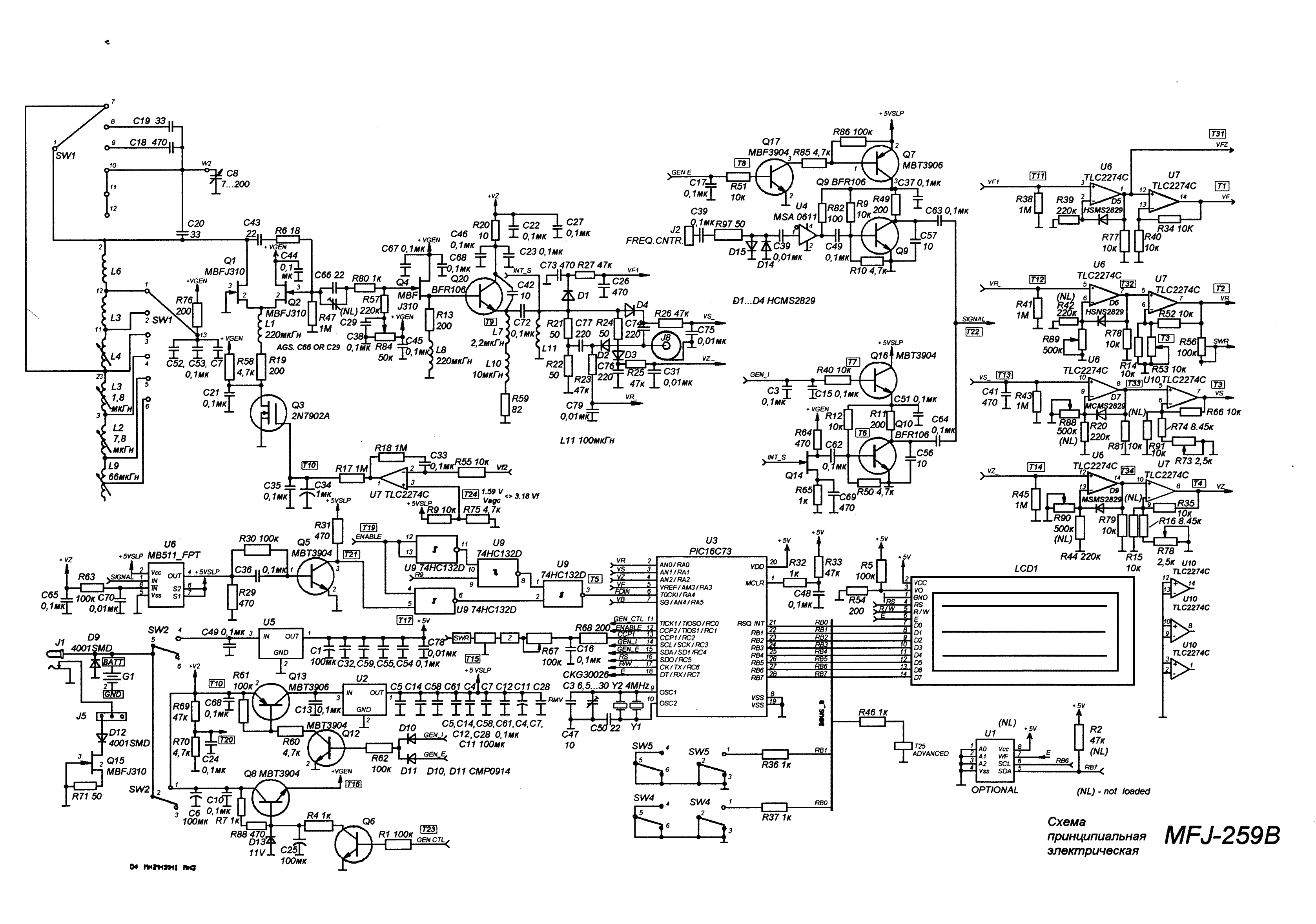

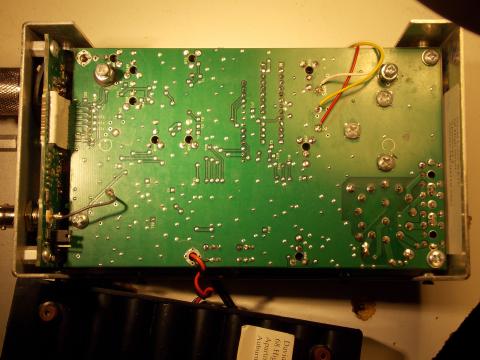

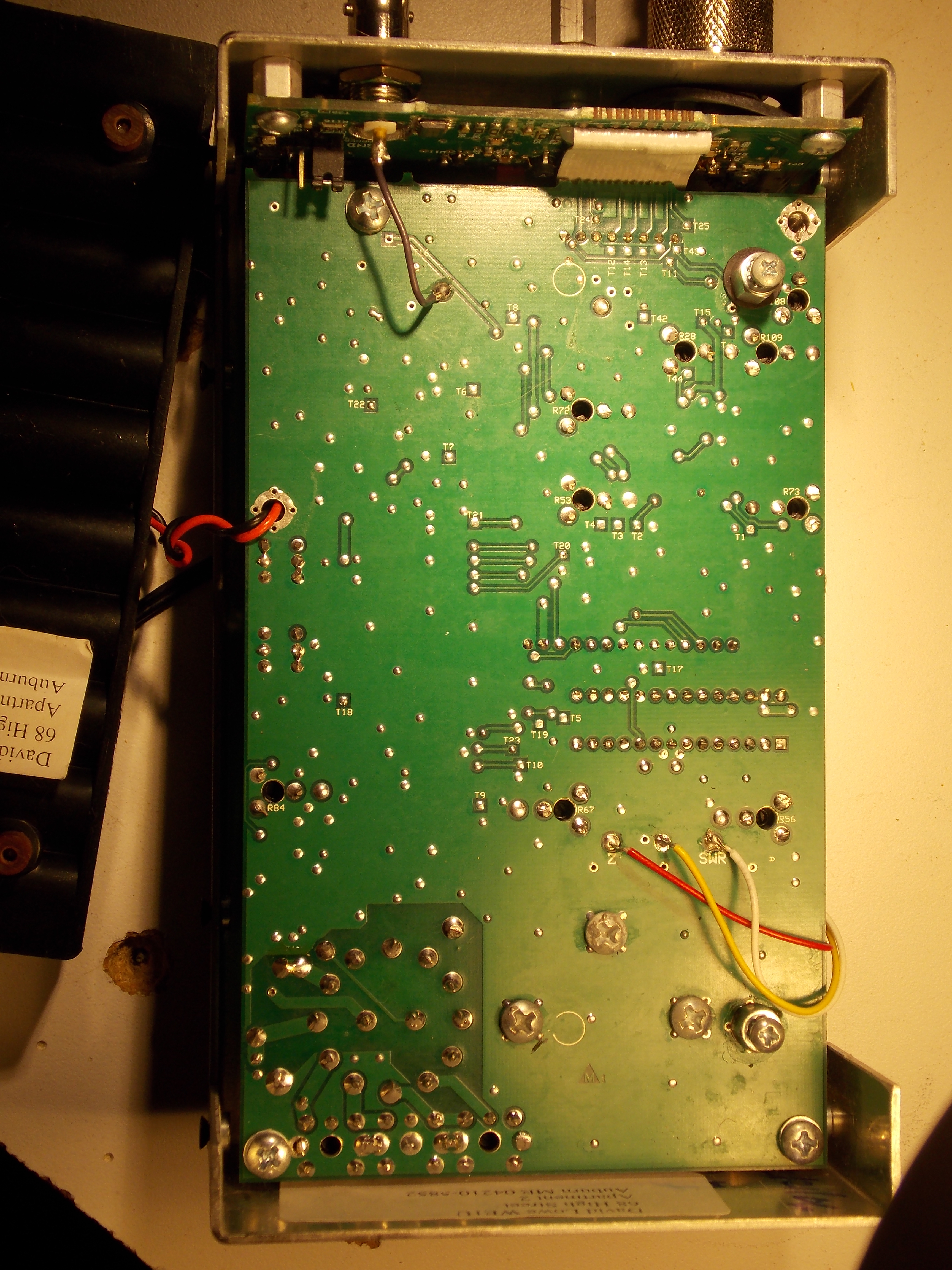

LinksMFJ-269 Calbration InstructionsWorksheet(WIP) Worksheet- mark2 My manaul from older MFJ-269 Version 1D2 (scanned to pdf 127 Mbytes) MFJ-269-scanned-manual.pdf MFJ-259B HF-VHF Analyzer has been updated(to include 220MHz): http://www.mfjenterprises.com/Product.php?productid=MFJ-259C http://www.w8ji.com/mfj-259b_calibration.htm MFJ-259 Cal MFJ-259 Cal for 2nd Source MFJ Enterprises, Inc. http://www.mfjenterprises.com/about_mfj.php MFJ-731 filter New MFJ-269C with 220MHz Antenna Isolation Article from Repeater Builders Understanding Your Antenna Analyzer by Joel R. Hallas, W1ZR DatasheetsAll are Surface MountHSMS2820 Surface Mount RF Schottky Barrier Diodes(detector diodes D1-D4 on MFJ-259 schematic) MSA-0611 bipolar Monolithic Microwave Integrated Circuit (MMIC) MMBFJ310 N-JFET RF Amp(Q1/Q2 differential amp and others) 2N7002 N-ch MOSFET BFR106 Low-Noise NPN BJT MBT3904 NPN General Purpose Amp/Switch MBT3906 PNP General Purpose Amp/Switch PIC16C73 8-Bit CMOS Microcontrollers with A/D Converter MB511 1GHz Prescaler TLC2274C Op-Amp The Wireman http://thewireman.com/products.html coax data http://thewireman.com/coaxdatacurrent2.pdf local copy |
|
